Description
Atlas for Anritsu VNA is compliant with IPC TM650 2.5.5.12 (Test Methods to determine the Amount of Signal Loss on Printed Boards) and provides support for Delta-L methodology.

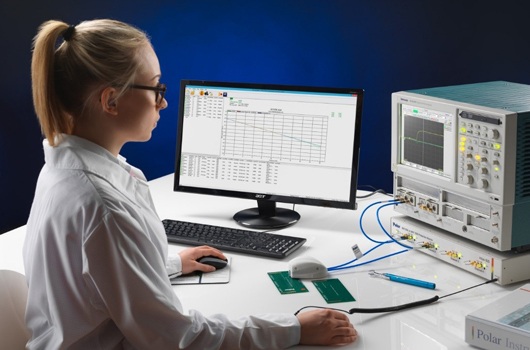

Atlas Si is a high precision insertion loss measurement package designed specifically for PCB fabricators and OEMs. It provides accurate, repeatable measurements of frequency-based transmission line losses, allowing fabricators to meet stringent targets that maintain signal integrity within the limits of the latest high-speed chipsets.
Atlas Si is a high precision insertion loss measurement package designed specifically for PCB fabricators and OEMs. It provides accurate, repeatable measurements of frequency-based transmission line losses, allowing fabricators to meet stringent targets that maintain signal integrity within the limits of the latest high-speed chipsets.
