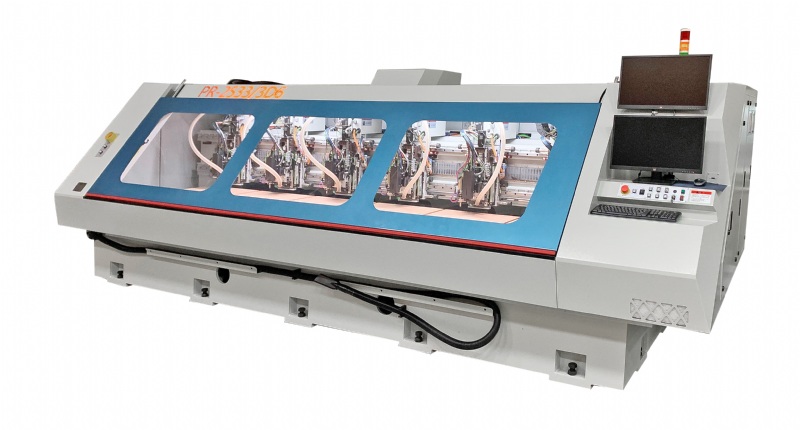

6 spindles with 6 CCD vision routing Machine

Model: PR-2533/3D6

Category: PCB Manufacturing

Exhibitor: ANDERSON INDUSTRIAL CORP.

Booth No: B521

0
Share :
Share :

Description
◆ 6 working stations moving individually for setting different compensation value.
◆ Z-axis independent depth control with patented probe technology compensates for depth detection results.
◆ It can be equipped with a vacuum table top device, which can quickly and efficiently feed the plate bending problem and improve the accuracy of blind fishing.

◆ 標準型盲撈 / Standard type :
以"下刀點"位置穩定進行深度控制,容易操作,並可獨立調整每軸的補償以達到要求深度。
Depth routing process in each slot start position and make up accuracy of different spindle.
◆ 探針型盲撈 / Probe type :
選擇探測材料或台面高度,以得知台面起伏變化,動態調整下撈深度,或計算盲撈區域平均高度
Using the probing function detected the panel or table height to improve blind routing accuracy.
◆ CBD盲撈 / CBD type :
藉由電流訊號得知表面導體或內層銅箔位置,使盲撈深度依不同探測數據追隨變化,求取最精確的盲撈深度。
To detect the surface conductor or inner copper depth by CBD signal, and follow the dynamic data to control the depth for the best accuracy.
