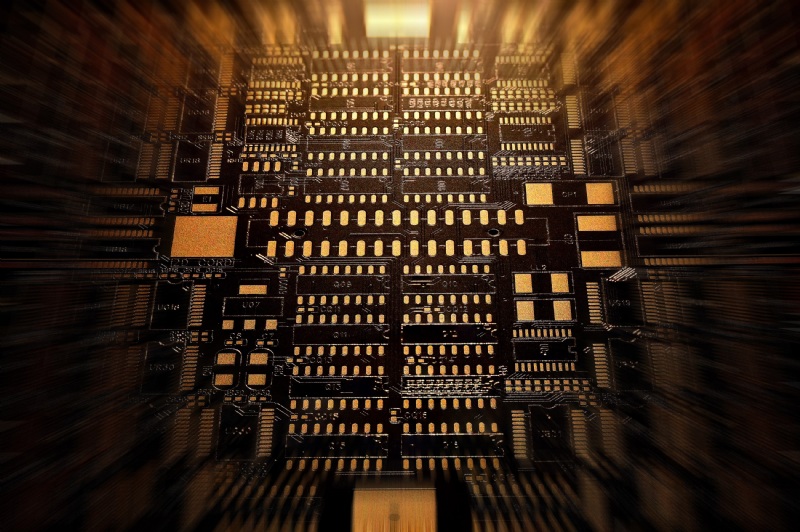

HDI is high density layout with small line width/space and distance between line to holes, it gives circuit design better flexibility. It is mainly used in advanced driver assistance systems (ADAS), wearable devices, 5G related communication boards, high-end laptops, SSD, medical products, etc.
