產品特色
Si9000e fast accurate PCB transmission line modeling.

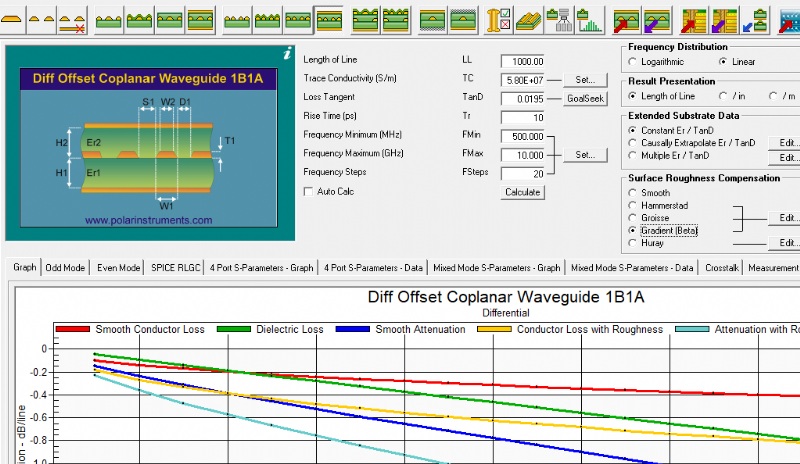

With its fast, accurate, frequency-dependent transmission line modeling, the Si9000e Insertion Loss Field Solver is designed to model transmission line loss, impedance at given frequencies and extract full transmission line parameters over a wide range of popular PCB transmission lines (over 100 structures). Employing boundary element method field solving, the Si9000e extracts RLGC matrices and rapidly plots a range of transmission line information for the structure you are designing. Loss is graphed three ways with clear indication of dielectric, copper and total loss and includes Huray / Canonball /Gradient plus legacy Hammerstad, & Groisse methods for roughness modeling:
With its fast, accurate, frequency-dependent transmission line modeling, the Si9000e Insertion Loss Field Solver is designed to model transmission line loss, impedance at given frequencies and extract full transmission line parameters over a wide range of popular PCB transmission lines (over 100 structures). Employing boundary element method field solving, the Si9000e extracts RLGC matrices and rapidly plots a range of transmission line information for the structure you are designing. Loss is graphed three ways with clear indication of dielectric, copper and total loss and includes Huray / Canonball /Gradient plus legacy Hammerstad, & Groisse methods for roughness modeling:
