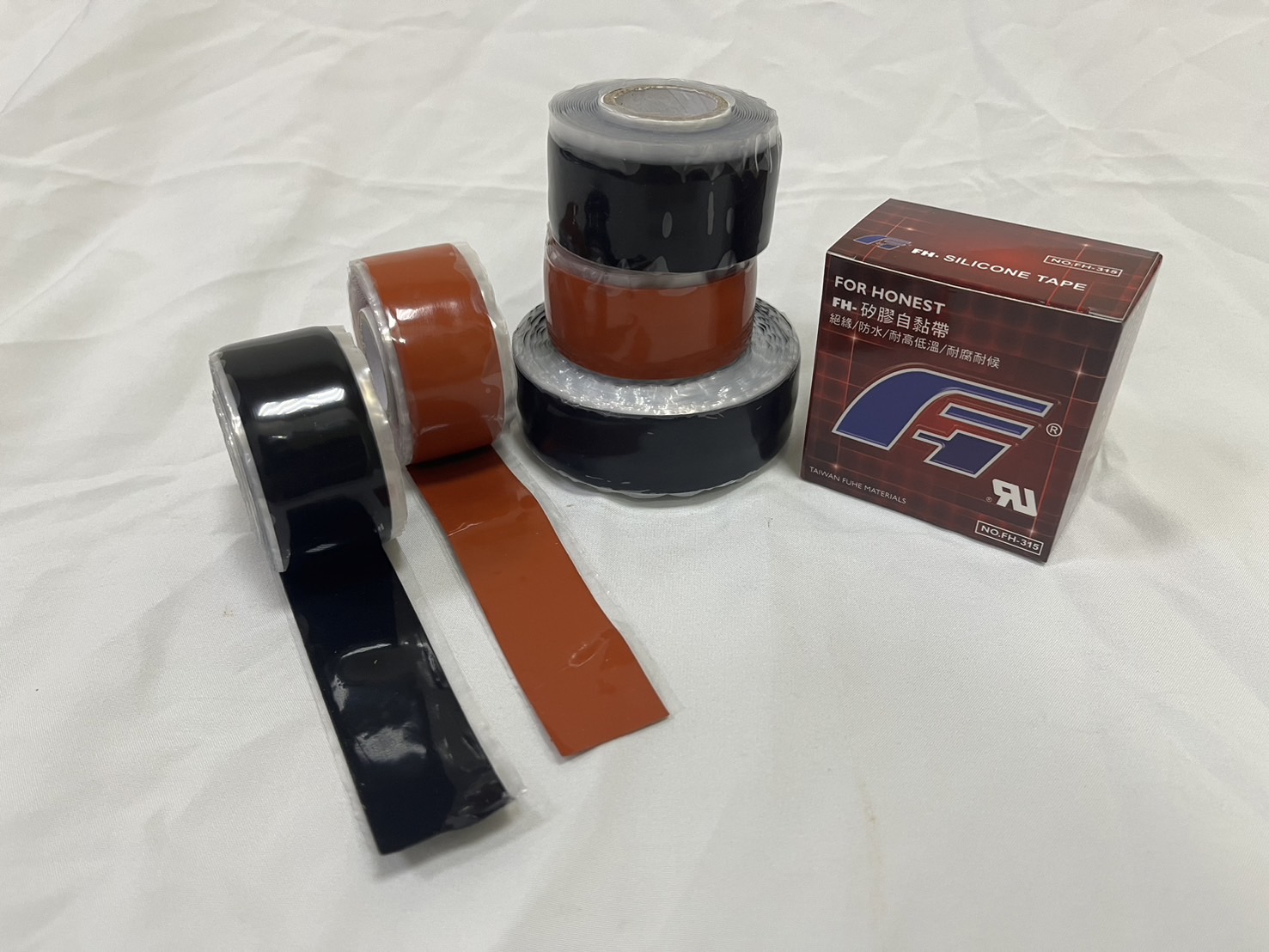

Self -fusing silicone tape FH-No.315

Self -fusing silicone tape

FH-No.315 series

Product Description:
Arlon Corporation of the United States is the most technologically advanced company in the field of silicone rubber in the world, with more than 50 years of production history and experience.
Silicone rubber belts are widely used for their good moisture-proof, insulation and oxidation resistance. Their products have been approved by Boeing and the US military.
We can provide you with products with excellent performance and stable quality. Self-fusing silicone rubber belt is made of high-quality materials and processed using special technology.
Made. It has the characteristics of high temperature resistance, impact resistance, good strength, high breakdown voltage, waterproof, etc. Its tensile strength, elongation and dielectric
The performance indicators such as electrical strength exceed those of similar products, and it is easy to construct and reliable to use. It is suitable for H-class motors and electrical appliances.
The lead wire is wrapped with insulating material, or it is called anti-ozone, anti-corona, high-voltage moisture-proof tape. It not only improves the overall performance of the motor,
The resulting lines form a solid object.
Self-fusing rubber belt performance characteristics:
1. Electrical insulation performance:
(1) Volume resistivity: at least 10 to the 13th power ohm/cm. (ASTM D257);
(2) The insulation voltage per millimeter of thickness reaches 27KV, which can provide a safe insulation environment for winding; using a thickness of 0.5mm
The insulation voltage can reach 13.5KV, which can meet the insulation requirements, or it is called silicone high-voltage self-adhesive tape;
(3) The main component of this product contains silicon, and even after combustion, silicon dioxide is generated, which still has insulating properties;
(4) For some occasions with special requirements, there are also completely flame-retardant products to provide a completely insulated and safe operating environment;
(5) It has excellent anti-corona, anti-arc and anti-magnetic track performance, providing a safe working environment.
2. Heat resistance and aging resistance
(1) Temperature range: -50℃～+260℃; maximum temperature resistance: 350℃;
(2) Thermal stability 180℃. If used at this temperature for a long time, the product can be used safely for more than 10 years.
Excellent;
(3) At 260°C, the long-term service life is up to 2000 hours;
3. Sealing and moisture-proof performance:
(1) The main material of the self-fusing silicone rubber tape is silicone rubber. Water vapor will not penetrate through the silicone tape, and it has excellent moisture resistance.
Can achieve effective insulation;
(2) After wrapping with tape, wrap it in a 1/2 overlap manner, and achieve self-fusion within 24 hours at room temperature.
Permanently fused into a layer, and the process is irreversible and can not be restored, tightly fitting the wound part. Due to its good conformability, it can be used even without
Regular curved parts can also fit tightly without loosening, achieving sealing function;
(3) High self-bonding strength, up to 50g/mm; (Arlon SQA-TMS-047);
(4) Water absorption: 0.9% (46 hours in H20 at 21°C)
4. Chemical properties:
(1) Has antioxidant and anti-ozone effects;
(2) It has anti-ultraviolet effect and good weather resistance;
(3) The main material is silicone rubber, which has good resistance to oil and other solvents and is corrosion-resistant.
5. Mechanical properties:
(1) Self-fusing silicone rubber belt has excellent shock absorption and heat insulation effects;
(2) Self-fusing silicone rubber belt has good resistance to mechanical impact;
(3) The elongation rate reaches 400%-500%;
6. Easy maintenance:
(1) The surface is not sticky, the surface does not stick to your hands, and it does not adhere to the surface it touches;
(2) When maintenance is needed, the self-fusing tape can be easily removed after the blade cuts it.
7. Diverse structures:
(1) Triangular section: The middle is a colored winding reference line, and the winding is superimposed along the colored line with consistent winding thickness;
(2) Rectangular section: The tape layer thickness is not required to be smooth and evenly wound;
(3) Glass fiber reinforced type: MOX-TAPE tape has glass fiber fabric embedded inside, which can give the tape an elongation of 15%-25%.
At the same time, it enhances the tear resistance of the tape; even when wrapped around sharp shapes, it provides the same thickness at the sharp edge, compressing
The glass fiber fabric in the silicone rubber prevents liquid absorption and is
Maintaining high insulation resistance, these controlled elongation tapes provide the same insulation barrier.
8. Easy to use:
(1) One layer of winding can provide good insulation, reducing labor and cost;
(2) All tapes are protected by a special release layer. When using, remove the release layer and wrap it directly around the contact surface.
9. Directions:
(1) The stretching rate is 400%-500%, and it is stretched to 200% when used for winding;
(2) When stretching and wrapping, it is best to overlap half of the material, and allow the last circle of wrapping to overlap naturally.
10. This product has passed the following certifications and standards:
(1) US military standards MIL-I-46852C, MIL-I-22444C,
(2) Boeing aircraft DMS2186 standard
(3) General Electric Company Standard A50A493
(4) UL certification (E216531)
11. This product can replace 3M70# self-fusing silicone rubber tape.

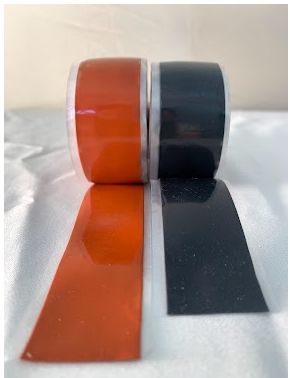

Color: black, white, blue, red, yellow
Product use:
1. High voltage, cables, joints, outdoor wrapping, indispensable tapes, high voltage, switches, etc. in the power supply system.
2. Cable accessories on large equipment in metallurgy and chemical industry;
3. The cable industry requires accessory wrapping and binding tapes;
4. Light rail tunnels, automobile repair plants, steel mills, automobile industry, shipyards, power plants, aerospace industry, warships,
Railway, underground engineering construction, waterproofing tape;
5. Motor industry, power equipment manufacturing, transformer industry, etc., with wide application and large quantity, high-level wrapping tape.
Product Notes: Finished or semi-finished products are usually packaged in rolls or single-sided fluorine release film cut into sheets, or can be packaged according to customer requirements.
Special processing, die cutting and punching are required.
Product specifications: T0.05-1mm*W25~100mm*L1~100m (can be customized according to needs)
Self-fusing silicone rubber tape, also known as silicone rubber self-adhesive tape, silicone tape, and self-melting silicone tape, has different translations in different countries.
