產品特色

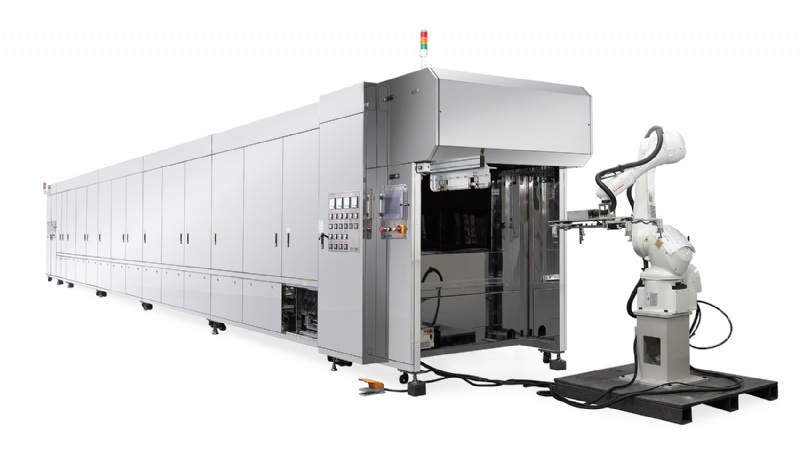

Purpose：Solder Mask Pre-cure, Epoxy/Resin Filling Curing
FEATURE
Energy-saving: PID temperature controller, Uniform temperature, with high performance SSR to improve temperature accuracy
Stable Transmission: Hanging-type patent clamping structure, avoid touching the panel surface
Easy to operate and maintain: Touch screen panel + independent maintenance door for each section
The air inlet is equipped with a filter to avoid secondary pollution.
Panel Dimension： PCB Thickness:0.3-3.2mm, Max. Size：A: 630*730mm B: 730*1250mm C: 1250*1250mm
Air exhaust capacity： 8-12 m/s
Power Supply： AC380V/50Hz 3N 135Kw
Air Supply： 20L/min, 5KG/c㎡, 1/4"PT joint, Φ12pipe
Applicable temperature： Indoor temperature+35℃~ Max180℃，Set freely according to requirements, Common setting 150℃
Feeding Method： Vacuum adsorption with Robotic arm
Motor Drive： ?Three-phase motor，With frequency converter and positioning system, Smooth transport
?Strong conveyor chain with patented fixture
FEATURE
Energy-saving: PID temperature controller, Uniform temperature, with high performance SSR to improve temperature accuracy
Stable Transmission: Hanging-type patent clamping structure, avoid touching the panel surface
Easy to operate and maintain: Touch screen panel + independent maintenance door for each section
The air inlet is equipped with a filter to avoid secondary pollution.
Panel Dimension： PCB Thickness:0.3-3.2mm, Max. Size：A: 630*730mm B: 730*1250mm C: 1250*1250mm
Air exhaust capacity： 8-12 m/s
Power Supply： AC380V/50Hz 3N 135Kw
Air Supply： 20L/min, 5KG/c㎡, 1/4"PT joint, Φ12pipe
Applicable temperature： Indoor temperature+35℃~ Max180℃，Set freely according to requirements, Common setting 150℃
Feeding Method： Vacuum adsorption with Robotic arm
Motor Drive： ?Three-phase motor，With frequency converter and positioning system, Smooth transport
?Strong conveyor chain with patented fixture
