產品特色
Usage: Post-cure after Legend Printing
FEATURE

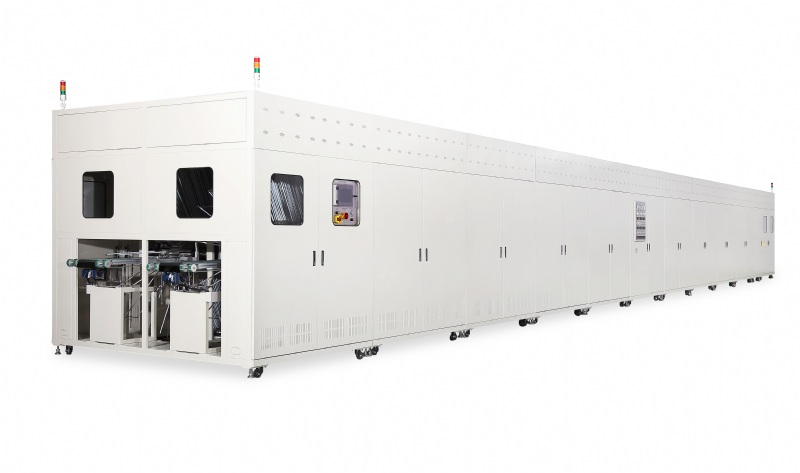

Double-row tunnel furnace, page turning mechanism
Inclined vertical type, No touching panel surface, save space, horizontal air supply
The air inlet is equipped with a filter to avoid secondary pollution
PID temperature controller, Uniform temperature, with high performance SSR to improve temperature accuracy
Easy to operate and maintain: Touch screen panel + independent maintenance door for each section
Panel Dimension： PCB thickness: 0.5-3.2mm, Min. 410*310mm,Max. 630*725mm
Air exhaust capacity： 8-12 m/s
Working Speed： 7 pcs/min (Step spacing:31.75mm/25.4mm/19.05mm)
Temperature control： Each heating section has an independent temperature controller
Heat Generating Unit： Efficient electric heater, heat generation more uniform
Feeding Method： Feed with diverter, double-row horizontal feed
Motor Device： ?Three-phase motor，With frequency converter and positioning system, Smooth transport
FEATURE
Double-row tunnel furnace, page turning mechanism
Inclined vertical type, No touching panel surface, save space, horizontal air supply
The air inlet is equipped with a filter to avoid secondary pollution
PID temperature controller, Uniform temperature, with high performance SSR to improve temperature accuracy
Easy to operate and maintain: Touch screen panel + independent maintenance door for each section
Panel Dimension： PCB thickness: 0.5-3.2mm, Min. 410*310mm,Max. 630*725mm
Air exhaust capacity： 8-12 m/s
Working Speed： 7 pcs/min (Step spacing:31.75mm/25.4mm/19.05mm)
Temperature control： Each heating section has an independent temperature controller
Heat Generating Unit： Efficient electric heater, heat generation more uniform
Feeding Method： Feed with diverter, double-row horizontal feed
Motor Device： ?Three-phase motor，With frequency converter and positioning system, Smooth transport
