With the XTS linear transport system, Beckhoff offers a proven drive solution in which magnetically driven movers move along a travel path of fully integrated motor modules. An Industrial PC with the TwinCAT automation software enables the independent control of the movers with individual motion profiles. This results in many system-related benefits: The transport system is ready for operation immediately after assembly, as power electronics and displacement measurement are included in the XTS motor modules and the movers are completely passive. Due to different geometries of the motor modules, both an open and a closed travel path can be created and the machine footprint can be reduced by individual track layouts. The XTS not only replaces conventional conveyor belts, but also enables an innovative design of the entire machine. With the flexible motion profiles, simple to highly complex processes can be realized and the entire manufacturing process can thus be optimized.
Related Products

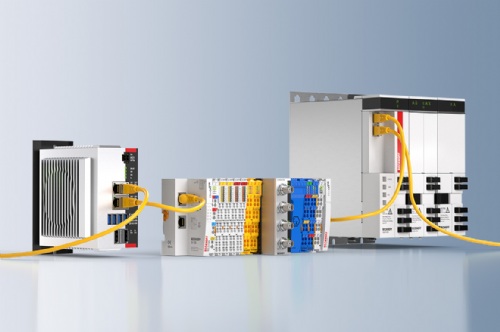

EtherCAT – the Ethernet Fieldbus

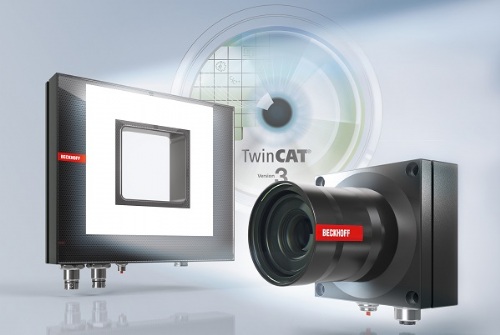

Vision: Complete and system-integrated machine vision

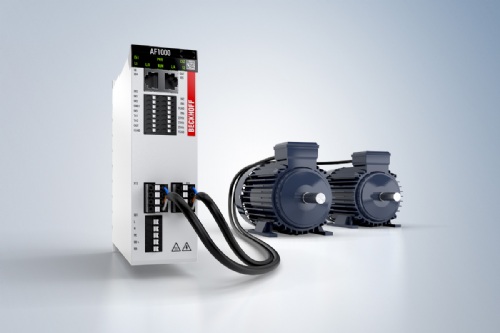

AF1000 | Economy variable frequency drive

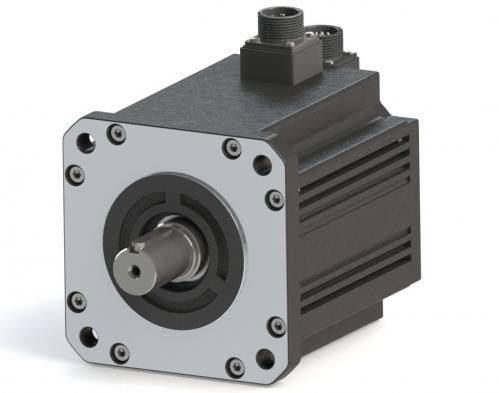

AM8000 | Synchronous servomotors

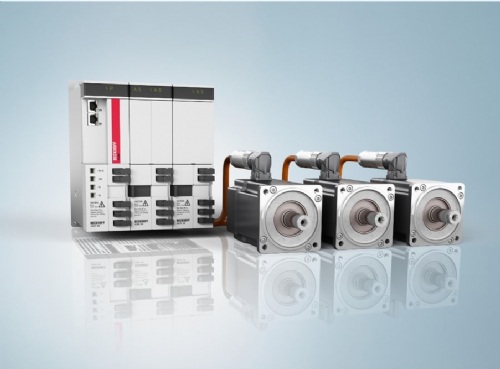

AX8000 | Multi-axis servo system

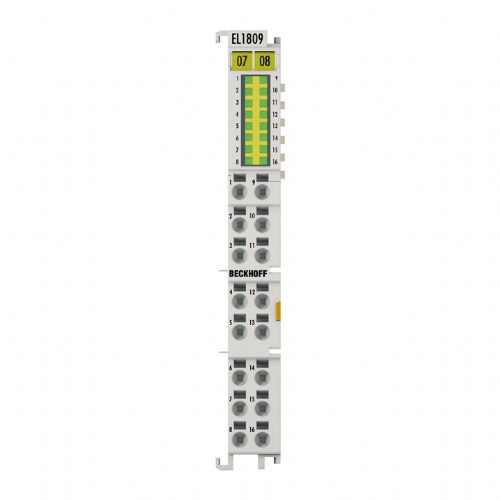

EL1809 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms

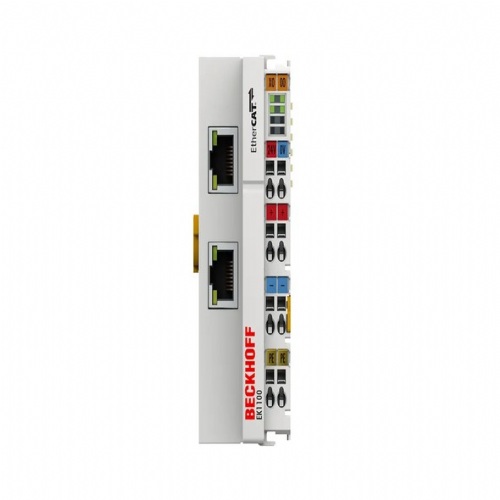

EK1100 | EtherCAT Coupler

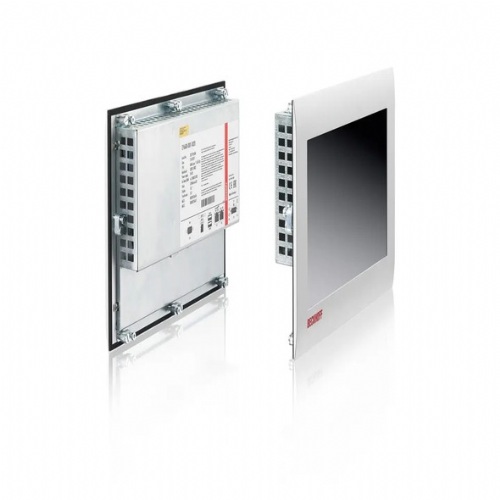

CP6606 | Economy built-in Panel PC

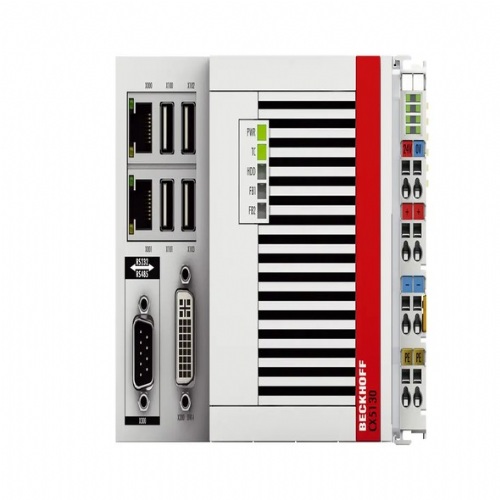

CX5130 | Embedded PC with Intel AtomR processor
