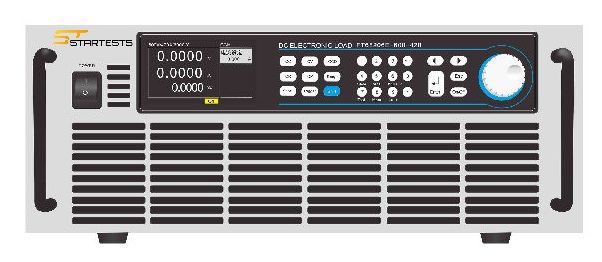

DC Electronic Load

■ Voltage range: 150 V, 600 V, 1200 V;
■ Current range: 2400A max. per unit, the maximum current can be extended to 10000A;
■ Rated power: 6kW, 8kW, 10kW, 12kW, 18kW, 24kW, 30kW, 36kW, 42kW, 48kW, 54kW, 60kW, max. 600kW (parallel);
■ CC, CV, CR, CP, CCDH, CCDL, CRD, CPD, CV+CC, CR+CC, CP+CCmodes;
■ Programming speed is 50kHz, sampling speed is 500kHz, dynamic load 50kHz;
■ Voltage accuracy: 0.025%+0.025%F.S.; Current accuracy: 0.05%+0.05%F.S.;
■ 30kHz dynamic frequency sweep, (Vpk+/-) measurement;
■ Up to 1kHz data transmission rate;
■ The instantaneous overload capacity exceeds twice the rated power;
■ Store and recall up to 20 groups setups;
■ Flexible triggering options via front panel, external input, or bus (used for transient test, automatic test);
■ Programmable sequence test, automatictest;
■ OCP/OPP test, load effect test, battery discharge test, battery internal resistance test;
■ Time measurement, short circuit simulation and LED simulation;

---
