Description

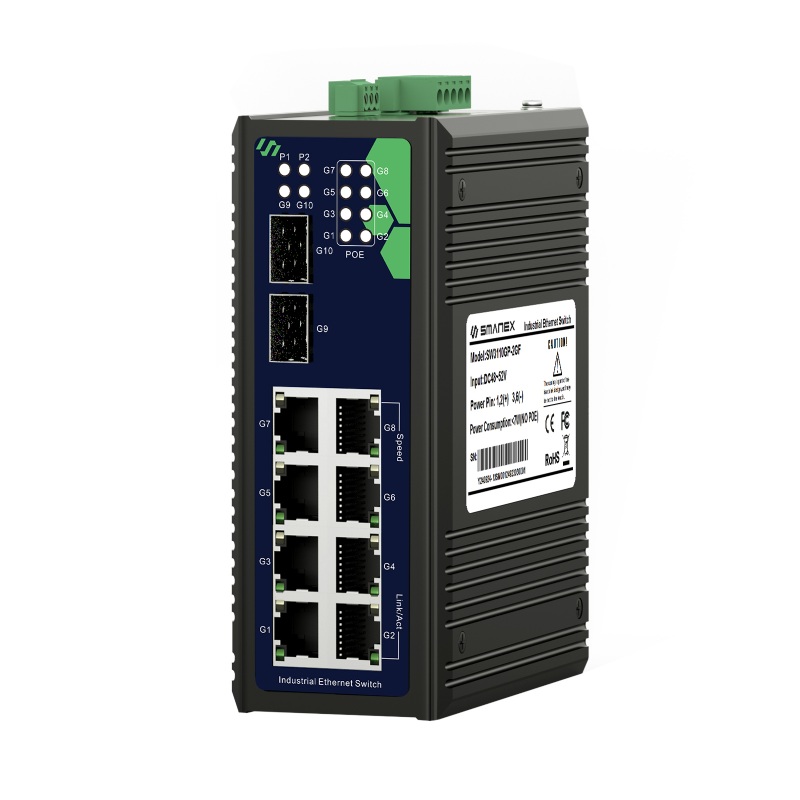

The SW3110GP-2GF is a high-performance, unmanaged industrial Ethernet switch designed for rugged environments requiring reliable PoE power delivery and high-speed fiber connectivity.
Ethernet Ports: Features 8 × 10/100/1000 Base-T(X) RJ45 ports with auto-negotiation.
PoE Capability: Supports IEEE 802.3af/at with a maximum of 30W per port and a total machine budget of 210W.
Fiber Uplink: Equipped with 2 × 1000 Base-FX SFP interfaces for long-distance transmission up to 20km.
Redundant Power: Supports dual DC inputs (48–52V) with non-polarized input to ensure continuous operation.
Ruggedized: Operates in extreme temperatures from -40 to +85C
Protection: Features Level 4 EMC protection (ESD, Surge, EFT) and 6KV surge protection for ports.
Alarm System: Includes a relay-based power failure alarm (Normally Open/Normally Closed) to alert operators of power loss.
Installation: Compact DIN-rail mountable design.
Ethernet Ports: Features 8 × 10/100/1000 Base-T(X) RJ45 ports with auto-negotiation.
PoE Capability: Supports IEEE 802.3af/at with a maximum of 30W per port and a total machine budget of 210W.
Fiber Uplink: Equipped with 2 × 1000 Base-FX SFP interfaces for long-distance transmission up to 20km.
Redundant Power: Supports dual DC inputs (48–52V) with non-polarized input to ensure continuous operation.
Ruggedized: Operates in extreme temperatures from -40 to +85C
Protection: Features Level 4 EMC protection (ESD, Surge, EFT) and 6KV surge protection for ports.
Alarm System: Includes a relay-based power failure alarm (Normally Open/Normally Closed) to alert operators of power loss.
Installation: Compact DIN-rail mountable design.
