Description

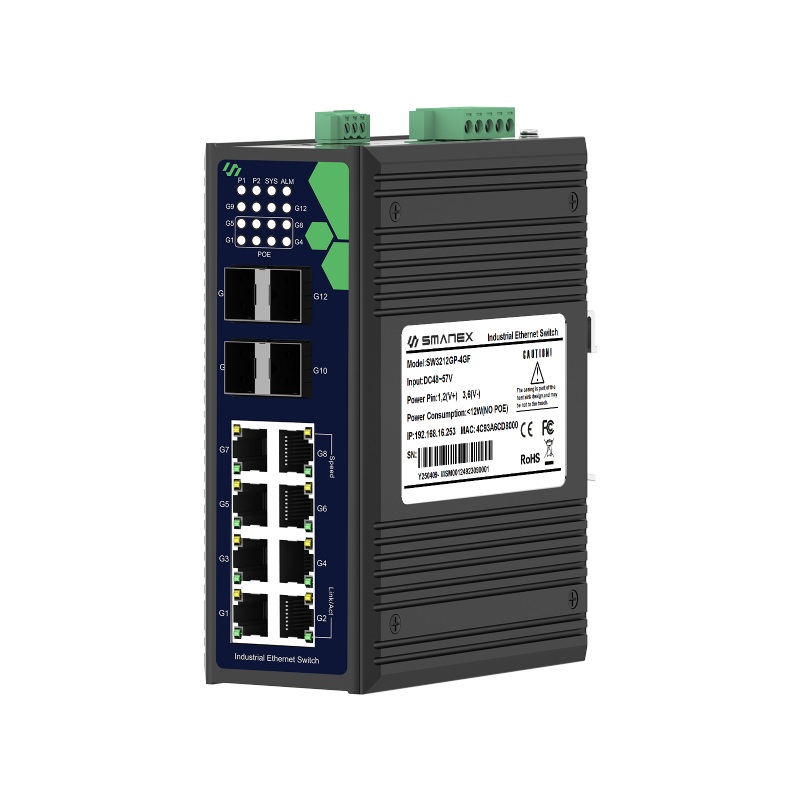

The SW3212GP-4GF is a high-performance, managed industrial Ethernet switch designed for mission-critical networks requiring advanced redundancy and high port density.
Ethernet Ports: 8 x 10/100/1000Base-T(X) RJ45 ports with auto-negotiation.
PoE Performance: Supports IEEE 802.3af/at with 30W per port and a 240W total budget.
Fiber Uplink: 4 x 1000Base-X ports for long-range connectivity up to 80km.
Reliable Power: Supports dual redundant DC 48–57V inputs with non-polarized protection.
Network Control: Supports VLAN, Port Aggregation, IGMP Snooping (v2/v3), and SNMP (v1/v2c).
Redundancy: Features STP/RSTP, ERPS, and specialized "Private Ring Technology" for rapid recovery.
Industrial Ruggedness: Operates from -40 to +80C with IP-rated protection and Level 4 ESD/EFT immunity.
Monitoring: Includes a dedicated Console port (RJ45), Web-based management, and a relay power failure alarm.
Ethernet Ports: 8 x 10/100/1000Base-T(X) RJ45 ports with auto-negotiation.
PoE Performance: Supports IEEE 802.3af/at with 30W per port and a 240W total budget.
Fiber Uplink: 4 x 1000Base-X ports for long-range connectivity up to 80km.
Reliable Power: Supports dual redundant DC 48–57V inputs with non-polarized protection.
Network Control: Supports VLAN, Port Aggregation, IGMP Snooping (v2/v3), and SNMP (v1/v2c).
Redundancy: Features STP/RSTP, ERPS, and specialized "Private Ring Technology" for rapid recovery.
Industrial Ruggedness: Operates from -40 to +80C with IP-rated protection and Level 4 ESD/EFT immunity.
Monitoring: Includes a dedicated Console port (RJ45), Web-based management, and a relay power failure alarm.
